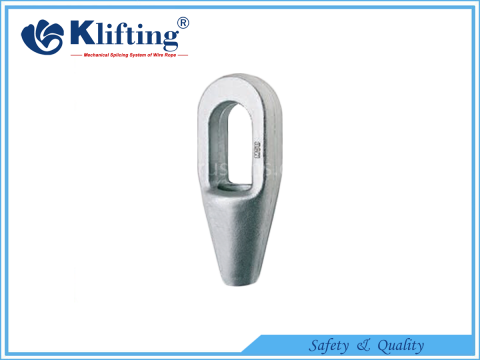

Closed Spelter Socket

Home > Products > Sockets

Sockets

Closed Spelter Socket

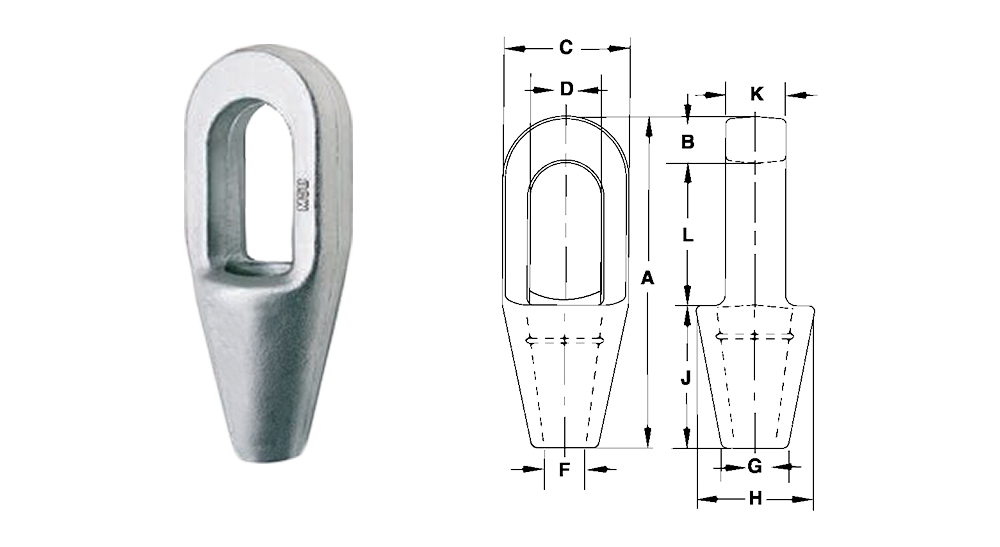

Part No.	Rope Size		Structural Strand Dia	Ultimate Load	Weight	Dimensions(mm)
	Rope Size		Structural Strand Dia	Ultimate Load	kg/pcs	Dimensions(mm)
	mm	inch	mm	t		A	B	C	D*	F	G	H	J	K	L
KCSS000014	6-4	1/4	-	4.5	0.23	116	12.7	39.6	22.4	9.65	17.5	39.6	57.2	12.7	46
KCSS051638	8-10	5/16 - 3/8	-	12	0.34	125	15.8	42.9	24.6	12.7	20.6	42.9	57.2	17.5	52.3
KCSS071612	11-13	7/16 - 1/2	-	20	0.68	140	17.5	51	29.5	14.2	23.9	51	63.5	22.4	58.7
KCSS091658	14-16	9/16 - 5/8	12-13	30.8	1.13	162	20.6	67	35.8	17.5	30.2	67	76.2	25.4	65
KCSS000034	18	3/4	14-16	43.5	1.92	194	26.9	76.2	42.2	22.4	33.3	70	89	31.8	77.7
KCSS000078	20-22	7/8	18-19	65.3	3.28	226	33.3	92	49.3	25.4	38.1	82.5	102	38.1	90.5
KCSS000001	24-26	1	20-22	81.6	4.76	254	36.6	105	58.5	28.7	44.5	95.5	114	44.5	103
KCSS010018	28-30	1-1/8	24-26	100	6.46	283	39.6	114	65	31.8	51	105	127	51	116
KCSS011438	32-35	1-1/4 -1-3/8	28	136	8.95	309	41.4	127	71	38.1	58.5	119	138	56.5	129
KCSS010012	38	1-1/2	30-32	170	13.24	355	49.3	137	81	41.4	70.5	132	151	62.5	155
KCSS010058	† 40-42	† 1-5/8	33-35	188	16.32	390	54	146	82.5	44.5	76.2	140	165	70	171
KCSS013478	† 44-48	† 1-3/4 - 1-7/8	36-40	268	25.96	445	55.5	171	95.5	51	79.5	162	191	76.2	198
KCSS020018	† 50-54	† 2 - 2-1/8	42-45	309	35.83	505	62	194	111	57.2	95.5	187	216	82.5	224
KCSS021438	† 56-60	† 2-1/4 - 2-3/8	46-48	360	47.62	546	70	216	127	66.8	105	210	229	92	248
KCSS021258	† 64-67	† 2-1/2 - 2-5/8	50-54	424	63.5	597	79.5	241	140	74.5	114	235	248	102	270
KCSS023478	† 70-73	† 2-3/4 - 2-7/8	56-62	549	99.79	645	79.5	273	159	79.5	124	259	279	124	286
KCSS030018	† 75-80	† 3 - 3-1/8	64-67	656	125	689	85.6	292	171	86	133	292	305	133	298
KCSS031438	† 82-86	† 3-1/4 - 3-3/8	70-73	750	142	743	102	311	184	92	146	311	330	146	311
KCSS031258	† 88-92	† 3-1/2 - 3-5/8	76-80	820	181	787	102	330	197	98.5	160	330	356	159	330
KCSS033404	† 94 - 102	† 3-3/4 - 4	-	1005	246	845	108	362	216	108	184	362	381	178	356
