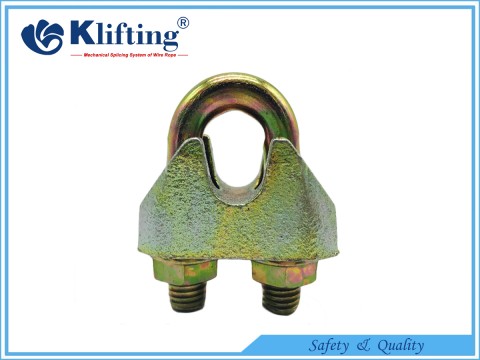

DIN1142 Wire Rope Clip
Part No. | Size | Dimensions(mm) | ||||||
mm | a | b1 | b2 | d | h1 | h2 | I | |
K1142C050 | 5 | 13 | 7 | 13 | 5 | 25 | 13 | 25 |
K1142C065 | 6.5 | 17 | 8 | 16 | 6 | 32 | 14 | 30 |
K1142C080 | 8 | 20 | 10 | 20 | 8 | 41 | 18 | 39 |
K1142C100 | 10 | 24 | 12 | 20 | 8 | 46 | 21 | 40 |
K1142C130 | 13 | 30 | 15 | 28 | 12 | 64 | 29 | 55 |
K1142C160 | 16 | 35 | 18 | 32 | 14 | 76 | 35 | 64 |
K1142C190 | 19 | 36 | 22 | 32 | 14 | 83 | 40 | 68 |
K1142C220 | 22 | 40 | 24 | 34 | 16 | 96 | 44 | 74 |
K1142C260 | 26 | 50 | 26 | 38 | 20 | 111 | 51 | 84 |
K1142C300 | 30 | 55 | 34 | 41 | 20 | 127 | 59 | 95 |
K1142C340 | 34 | 60 | 38 | 45 | 22 | 141 | 67 | 105 |
K1142C400 | 40 | 65 | 44 | 49 | 24 | 159 | 77 | 117 |
