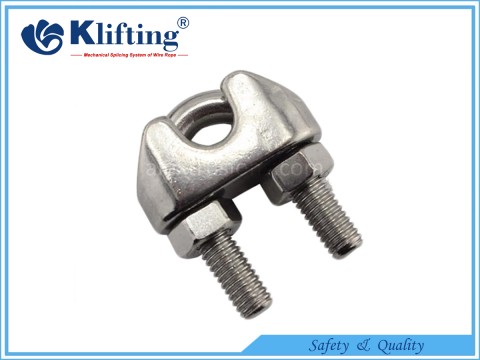

DIN741 Wire Rope Clip

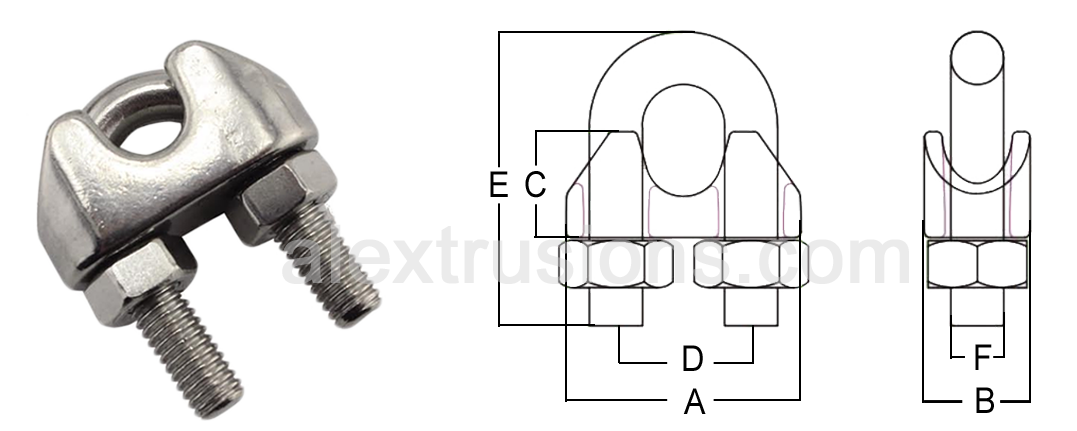

| Part No. | Size | Dimensions(mm) | |||||
| mm | A | B | C | D | E | F | |
| K741C020 | 2 | 17 | 9.5 | 9.5 | 7 | 21 | 3 |
| K741C030 | 3 | 21 | 10 | 10 | 9 | 21 | 4 |
| K741C040 | 4 | 21 | 10 | 10 | 9 | 23.5 | 4 |
| K741C050 | 5 | 23 | 10 | 10 | 10 | 26 | 5 |
| K741C060 | 6 | 25 | 11.5 | 11.5 | 13 | 29 | 5 |
| K741C080 | 8 | 29 | 13 | 14 | 15.5 | 33 | 6 |
| K741C100 | 10 | 33 | 15 | 16.5 | 19.5 | 43 | 8 |
| K741C120 | 12 | 40 | 18 | 18 | 23 | 50 | 10 |
| K741C160 | 16 | 49 | 24 | 25 | 28 | 65 | 12 |
| K741C200 | 20 | 53 | 27.5 | 32 | 32 | 77 | 12 |
