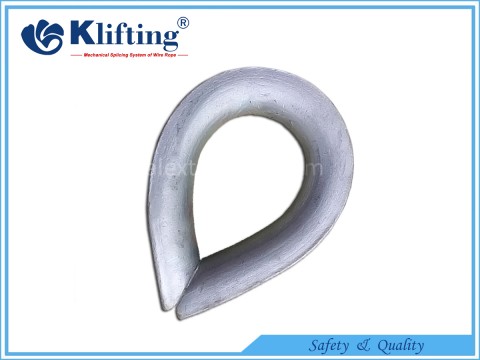

| BS EN 13411-1 GALVANISED THIMBLES | |||||||||
| Part No. | Rope Size | A | B | C (min) | D | E | F (min) | Weight | |
| mm | inch | mm | mm | mm | mm | mm | mm | kg/100pcs | |
| KEN13411006 | 6 | 1/4 | 20 | 35 | 11.5 | 31 | 48 | 7.5 | 3.3 |
| KEN13411008 | 8 | 5/16 | 22 | 38 | 12.7 | 33 | 54 | 7.9 | 5.2 |
| KEN13411009 | 9-10 | 3/8 | 25 | 48 | 14.3 | 38 | 64 | 10.3 | 8.4 |
| KEN13411011 | 11 | 7/16 | 29 | 54 | 17.5 | 41 | 73 | 12.7 | 10.8 |
| KEN13411012 | 12-13 | 1/2 | 32 | 59 | 20.6 | 44 | 79 | 14.3 | 14.2 |
| KEN13411016 | 16 | 5/8 | 41 | 75 | 22.2 | 59 | 98 | 15.9 | 27.2 |
| KEN13411018 | 18 | 11/16 | 44 | 79 | 28.6 | 67 | 108 | 19 | 34.7 |
| KEN13411019 | 19-20 | 3/4 | 51 | 92 | 28.6 | 73 | 124 | 20.6 | 47 |
| KEN13411022 | 22 | 7/8 | 57 | 102 | 31.8 | 83 | 133 | 22.2 | 64 |
| KEN13411026 | 26 | 1 | 70 | 119 | 34.9 | 108 | 162 | 27 | 99 |
| KEN13411028 | 28 | 1-1/8 | 76 | 133 | 38.1 | 111 | 178 | 28.6 | 135 |
| KEN13411032 | 32 | 1-1/4 | 95 | 152 | 41.3 | 133 | 197 | 33.3 | 180 |
| KEN13411035 | 35 | 1-3/8 | 105 | 175 | 47.6 | 152 | 229 | 38.1 | 264 |
| KEN13411038 | 38 | 1-1/2 | 114 | 197 | 54 | 165 | 254 | 41.3 | 336 |
| KEN13411041 | 41 | 1-5/8 | 114 | 197 | 55.6 | 165 | 254 | 42.9 | 350 |
| KEN13411044 | 44 | 1-3/4 | 127 | 229 | 57.2 | 178 | 286 | 50.8 | 570 |
| KEN13411052 | 52 | 2 | 140 | 257 | 69.8 | 203 | 330 | 63.5 | 750 |
