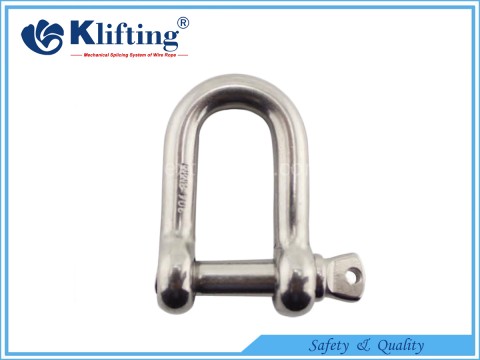

Euro Type Large Dee Shackle
| Part No. | Size | Dimensions(mm) | |||
| mm | A | B | C | D | |
| KEDS040 | 4 | 4 | 4 | 8 | 16 |
| KEDS050 | 5 | 5 | 5 | 10 | 20 |
| KEDS060 | 6 | 6 | 6 | 13 | 24 |
| KEDS080 | 8 | 8 | 8 | 16 | 32 |
| KEDS100 | 10 | 10 | 10 | 20 | 40 |
| KEDS120 | 12 | 12 | 12 | 24 | 48 |
| KEDS140 | 14 | 14 | 14 | 28 | 56 |
| KEDS160 | 16 | 16 | 16 | 32 | 64 |
| KEDS180 | 18 | 18 | 18 | 36 | 72 |
| KEDS200 | 20 | 20 | 20 | 40 | 76 |
| KEDS220 | 22 | 22 | 22 | 44 | 88 |
| KEDS250 | 25 | 25 | 25 | 50 | 100 |
| KEDS280 | 28 | 28 | 28 | 56 | 112 |
| KEDS320 | 32 | 32 | 32 | 64 | 128 |
