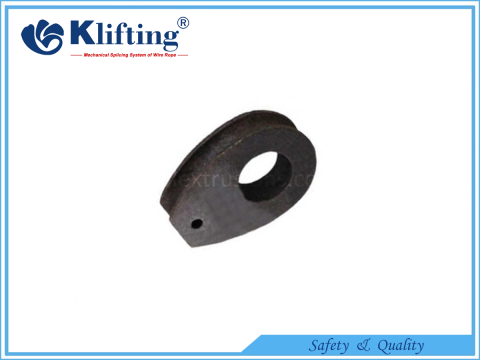

GB/T 5974.2-2006 Dead Thimble

Thimbles

GB/T 5974.2-2006 Dead Thimble

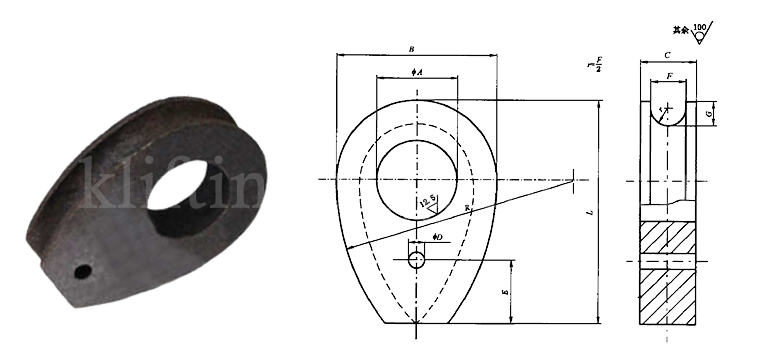

Part No. Rope Size

Dimensions(mm)

 Weight
F  C A B L R G D  E
mm Basic Limit Basic Limit Basic Limit Basic Limit Basic Limit min kg/pcs
Size Deviation Size Deviation Size Deviation Size Deviation Size Deviation 　
KGB008 8 8.9±03 14 0
-1.4		 20 +0.149
+0.065		 40 ±2 56 ±3 59 +13
0		 6 5 20 0.08
KGB010 10 11.2±0.3 17.5 25 50 70 74 7.5 0.17
KGB012 12 13.4±0.4 21 30 60 84 89 9 0.32
KGB014 14 15.6±0.5 24.5 35 +0.180
+0.080		 70 98 104 10.5 0.5
KGB016 16 17.8±0.6 28 0
-2.8		 40 80 ±4 112 ±6 118 +6
0		 12 0.78
KGB018 18 20.1±0.6 31.5 45 90 126 133 13.5 1.14
KGB020 20 22.3±0.7 35 50 100 140 148 15 10 30 1.41
KGB022 22 24.5±0.8 38.5 55 +0.220
+0.100		 110 154 163 16.5 1.96
KGB024 24 26.7±0.9 42 0
-3.4		 60 120 ±6 168 ±9 178 +9
0		 18 2.41
KGB026 26 29.0±0.9 45.5 65 130 182 193 19.5 3.46
KGB028 28 31.2±1.0 49 70 140 196 207 21 4.3
KGB032 32 35.6±1.2 56 80 160 224 237 24 6.46
KGB036 36 40.1±1.3 63 0
-4.4		 90 +0.260
+0.120		 180 ±9 252 ±13 267 +13
0		 27 9.77
KGB040 40 44.5±1.5 70 100 200 280 296 30 12.94
KGB044 44 49.0±1.6 77 110 220 308 326 33 15 45 17.02
KGB048 48 53.4±1.8 84 120 240 336 356 36 22.75
KGB052 52 57.9±1.9 91 0
-5.5		 130 +0.305
+0.145		 260 ±13 364 ±18 385 +19
0		 39 28.41
KGB056 56 62.3±2.1 98 140 280 392 415 42 35.56
KGB060 60 66.8±2.2 105 150 300 420 445 45 48.35
