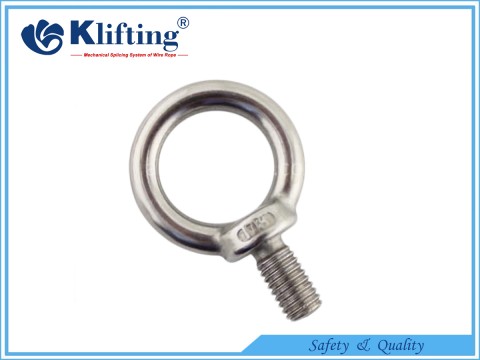

JIS1168 Eye Bolt
Part No. | Size | Dimensions(mm) | ||||
mm | A | B | C | D | E | |
K1168B030 | 3 | 7 | 7 | 3 | 9 | 23 |
K1168B040 | 4 | 10 | 10 | 4 | 11 | 29 |
K1168B050 | 5 | 13 | 11.5 | 5 | 11.5 | 35 |
K1168B060 | 6 | 16.5 | 12 | 5 | 14 | 41 |
K1168B080 | 8 | 20 | 15 | 5.7 | 15 | 47 |
K1168B100 | 10 | 25 | 19 | 7 | 18 | 58 |
K1168B120 | 12 | 30 | 22.5 | 9 | 21 | 69 |
K1168B160 | 16 | 36 | 28 | 11 | 27.5 | 87.5 |
K1168B200 | 20 | 40 | 32 | 15 | 31 | 101 |
K1168B240 | 24 | 50 | 41 | 18 | 36 | 122 |
