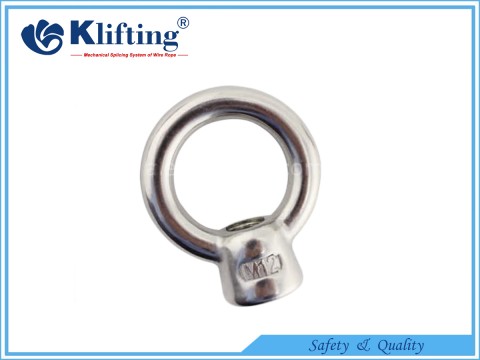

JIS1169 Eye Nut
| Part No. | Size | Dimensions(mm) | ||||
| mm | A | B | C | D | M | |
| K1169N090 | 6 | 16.5 | 12 | 5 | 31 | 6 |
| K1169N080 | 8 | 20 | 15 | 5.7 | 39 | 8 |
| K1169N100 | 10 | 25 | 19 | 7 | 47.5 | 10 |
| K1169N120 | 12 | 30 | 22.5 | 9 | 57.5 | 12 |
| K1169N160 | 16 | 36 | 28 | 11 | 69 | 16 |
| K1169N200 | 20 | 40 | 32 | 15 | 79 | 20 |
| K1169N240 | 24 | 50 | 41 | 18 | 102 | 24 |
