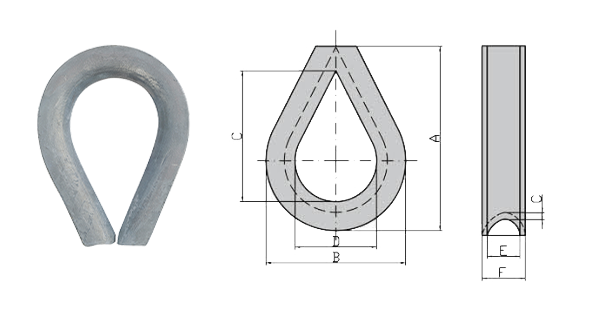

| Part No. | Dimensions | Weight | |||||
| A(inch) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | kg/100pcs | |
| KK20002 | 2 | 42 | 35 | 22 | 9 | 14 | 6 |
| KK20211 | 2-1/2 | 50 | 45 | 30 | 11 | 15 | 7.6 |
| KK20003 | 3 | 58 | 55 | 35 | 13 | 18 | 14 |
| KK20312 | 3-1/2 | 73 | 65 | 45 | 15 | 20 | 23 |
| KK20004 | 4 | 75 | 75 | 50 | 17 | 22 | 26 |
| KK20412 | 4-1/2 | 85 | 86 | 53 | 19 | 25 | 38 |
| KK20005 | 5 | 100 | 93 | 60 | 21 | 29 | 61 |
| KK20512 | 5-1/2 | 110 | 105 | 65 | 23 | 33 | 78 |
| KK20006 | 6 | 115 | 115 | 70 | 25 | 34 | 96 |
| KK20007 | 7 | 135 | 130 | 80 | 30 | 38 | 145 |
| KK20008 | 8 | 155 | 160 | 100 | 33 | 44 | 166 |
| KK20009 | 9 | 175 | 178 | 115 | 38 | 49 | 240 |
| KK20010 | 10 | 190 | 195 | 120 | 41 | 52 | 330 |
| KK20011 | 11 | 210 | 215 | 130 | 46 | 60 | 530 |
| KK20012 | 12 | 225 | 240 | 140 | 52 | 65 | 790 |
| KK20014 | 14 | 240 | 275 | 150 | 56 | 69 | 950 |
| KK20017 | 17 | 290 | 350 | 180 | 70 | 88 | 1800 |
| KK20017 | 17 | 290 | 350 | 180 | 66 | 98 | 1700 |
| KK20019 | 19 | 320 | 405 | 220 | 81 | 121 | 2800 |
| KK20022 | 22 | 375 | 470 | 240 | 92 | 132 | 3630 |
| KK20022 | 22 | 375 | 470 | 240 | 85 | 125 | 3630 |
| KK20024 | 24 | 410 | 510 | 250 | 105 | 145 | 4600 |
| KK20024 | 24 | 410 | 510 | 250 | 98 | 138 | 4600 |
| KK20025 | 25 | 430 | 530 | 265 | 108 | 148 | 5200 |
| KK20025 | 25 | 430 | 530 | 265 | 115 | 155 | 5200 |
| KK20026 | 26 | 450 | 550 | 280 | 120 | 160 | 5500 |
| KK20026 | 26 | 450 | 550 | 280 | 130 | 170 | 5500 |
