KA Series Wire Rope Annealing Machine
E-mail: sales@klifting-rigging.com
Description of Products

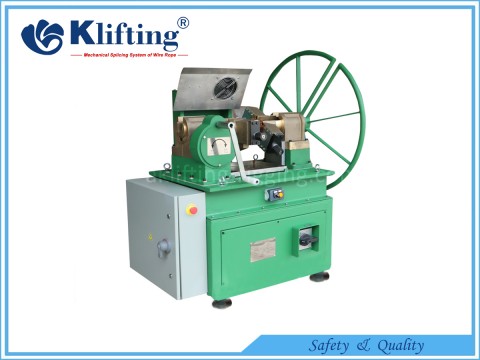

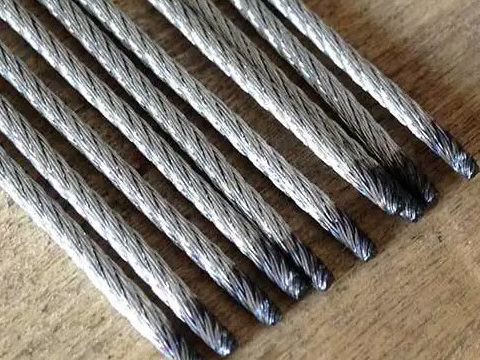

KA series annealing machines are suitable for annealing and tapering different sizes of steel wire ropes with twisted and tapered ends by adjusting the distance between the machine clamps.
The current supply is controlled by foot switch. The twisting and pulling apart of the wire rope are controlled by two separate parts.
Unique design for grips to secure the wire rope properly.
KA-2060 is the largest annealing and tapering machine. The power of pulling apart the wire rope is supplied by hydraulic.
Optional Accessories: Smoke exhaust device.
| Model | Working Power | Rated Power | Capacity | Output Setting | L×W×H/mm |
| KA-0316 | 220V/50HZ | 5KVA | 3mm-16mm | Tap positation | 700×400×1200 |
| KA-0632 | 380V/50HZ | 15KVA | 6mm-32mm | Tap positation | 750×650×1100 |
| KA-1040 | 380V/50HZ | 75KVA | 10mm-40mm | Tap positation | 1100×1100×1500 |
| KA-2060 | 380V/50HZ | 100KVA | 20mm-60mm | Tap positation | 1400×1300×1600 |
