Part No. |
Rope Size | Structural Strand Dia. |
Ultimate Load |

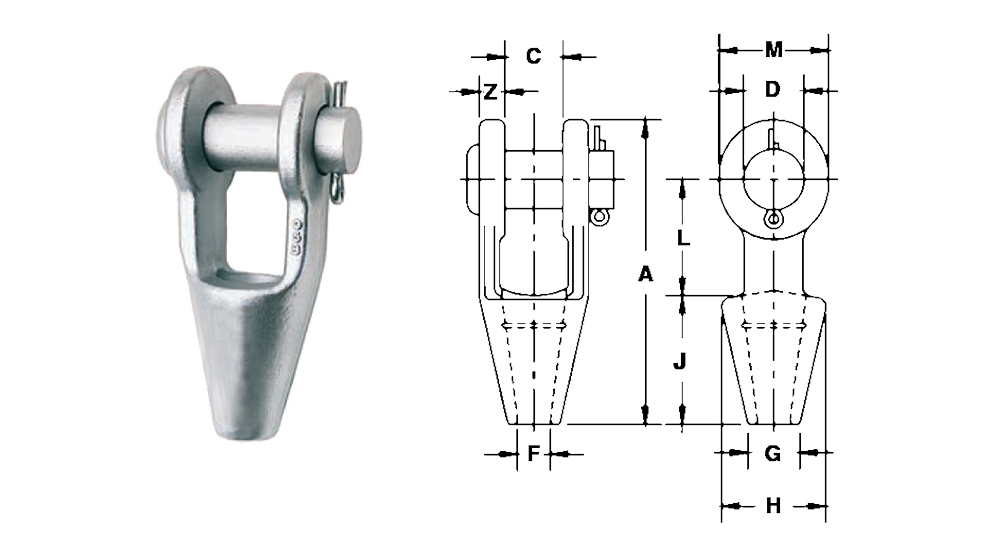

Weight | Dimensions(mm) | Tolerance | ||||||||||
| kg/pcs | +/- | |||||||||||||||
| mm | inch | mm | t | A | C | D | F | G | H | J | L | M | N | C | ||
| KOSS014000 | 6-7 | 1/4 | - | 4.5 | 0.5 | 116 | 19.1 | 17.5 | 9.65 | 17.5 | 39.6 | 57 | 39.6 | 33.3 | 9.1 | 1.52 |
| KOSS051638 | 8-10 | 5/16-3/8 | - | 12 | 0.59 | 123 | 20.6 | 20.6 | 12.7 | 20.6 | 42.9 | 57 | 44.5 | 38.1 | 11.2 | 1.52 |
| KOSS071612 | 11-13 | 7/16-1/2 | - | 20 | 1.02 | 141 | 25.4 | 25.4 | 14.2 | 23.9 | 47.8 | 63.5 | 51 | 47.8 | 12.7 | 1.52 |
| KOSS091658 | 14-16 | 9/16-5/8 | 12-13 | 27 | 1.63 | 171 | 31.8 | 30.2 | 17.5 | 28.7 | 57 | 76 | 63.5 | 57 | 14.2 | 1.52 |
| KOSS034000 | 18 | 3/4 | 14-16 | 43 | 2.64 | 202 | 38.1 | 35.1 | 20.6 | 31.8 | 66.5 | 89 | 76 | 66.5 | 15.7 | 1.52 |
| KOSS078000 | 20-22 | 7/8 | 18-19 | 55 | 4.38 | 235 | 44.5 | 41.4 | 23.9 | 38.1 | 82.5 | 102 | 89 | 79.5 | 20.3 | 1.52 |
| KOSS010000 | 24-26 | 1 | 20-22 | 78 | 7.03 | 268 | 51 | 51 | 28.7 | 44.5 | 95.5 | 114 | 102 | 95.5 | 22.4 | 1.52 |
| KOSS010018 | 28-30 | 1-1/8 | 24-26 | 92 | 9.75 | 300 | 57 | 57 | 31.8 | 51 | 105 | 127 | 117 | 105 | 25.4 | 3.05 |
| KOSS011438 | 32-35 | 1-1/4 - 1-3/8 | 28 | 136 | 14.1 | 335 | 63.5 | 63.5 | 38.1 | 57 | 121 | 140 | 127 | 121 | 28.7 | 3.05 |
| KOSS010012 | 38 | 1-1/2 | 30-32 | 170 | 21.4 | 384 | 76 | 70 | 41.4 | 70 | 133 | 152 | 152 | 137 | 30.2 | 3.05 |
| KOSS010058 | * 40-42 | * 1-5/8 | 33-35 | 188 | 24.9 | 413 | 76 | 76 | 44.5 | 76 | 140 | 165 | 165 | 146 | 33.3 | 3.05 |
| KOSS013478 | * 44-48 | * 1-3/4 - 1-7/8 | 36-40 | 268 | 37.2 | 464 | 89 | 89 | 51 | 79.5 | 162 | 191 | 178 | 165 | 39.6 | 3.05 |
| KOSS020018 | * 50-54 | * 2 - 2-1/8 | 42-45 | 291 | 59 | 546 | 102 | 95.5 | 57 | 95.5 | 187 | 216 | 229 | 178 | 46 | 3.05 |
| KOSS021438 | * 56-60 | * 2-1/4 - 2-3/8 | 46-48 | 360 | 76 | 597 | 114 | 108 | 63.5 | 102 | 210 | 229 | 254 | 197 | 54 | 3.05 |
| KOSS021258 | * 64-67 | * 2-1/2 - 2-5/8 | 50-54 | 424 | 114 | 648 | 127 | 121 | 73 | 114 | 235 | 248 | 274 | 216 | 60.5 | 3.05 |
| KOSS023478 | * 70-73 | * 2-3/4 - 2-7/8 | 56-62 | 511 | 143 | 692 | 133 | 127 | 79 | 124 | 267 | 279 | 279 | 229 | 73 | 6.35 |
| KOSS030018 | * 75-80 | * 3 - 3-1/8 | 64-67 | 563 | 172 | 737 | 146 | 133 | 86 | 133 | 282 | 305 | 287 | 241 | 76 | 6.35 |
| KOSS031438 | * 82-86 | * 3-1/4 - 3-3/8 | 70-73 | 722 | 197 | 784 | 159 | 140 | 92 | 146 | 302 | 330 | 300 | 254 | 79 | 6.35 |
| KOSS031258 | * 88-92 | * 3-1/2 - 3-5/8 | 76-80 | 779 | 255 | 845 | 171 | 152 | 98.5 | 165 | 314 | 356 | 318 | 274 | 82.5 | 6.35 |
| KOSS033404 | * 94-102 | * 3-3/4 - 4 | - | 875 | 355 | 921 | 191 | 178 | 108 | 184 | 346 | 381 | 343 | 318 | 89 | 6.35 |
