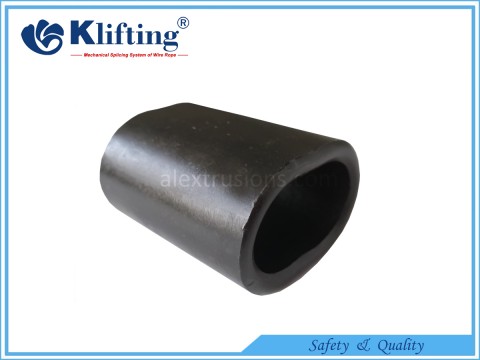

Swage Duplex Sleeve
For turnback wire rope splicing
Special processed carbon steel
Designed for lower temperature toughness
Resists cracking when swaged(equals or exceeds stainless steel sleeves)
Better swageability
Stamp for identification after swaging

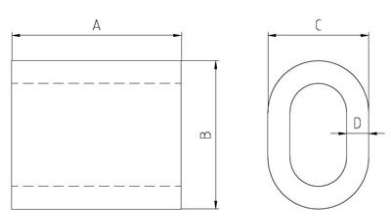

| Part No. | Rope Size | Weight kg/100pcs |
|
| mm | inch | ||
| K2000516 | 8 | 5/16 | 7.71 |
| K2000308 | 9-10 | 3/8 | 5.9 |
| K2000716 | 11 | 7/16 | 14.1 |
| K2000102 | 13 | 1/2 | 12.2 |
| K2000916 | 14 | 9/16 | 28.6 |
| K2000508 | 16 | 5/8 | 24.5 |
| K2000304 | 18-20 | 3/4 | 41.3 |
| K2000708 | 22 | 7/8 | 57 |
| K2010000 | 25-26 | 1 | 85 |
| K2010104 | 31-32 | 1-1/4 | 174 |
