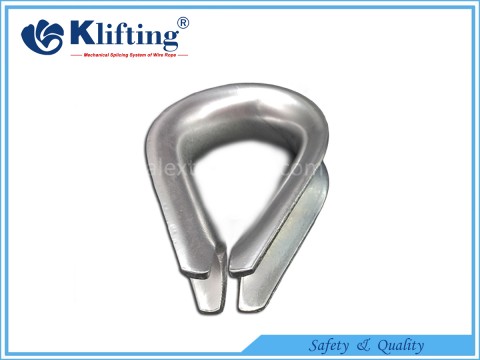

Hot dip galvanized steel.
The standard choice for light duty applications and loading conditions.
| Part No. | Size | Dimensions(inch) | Weight | |||||
| inch | A | B | C | D | E | F | kg/pcs | |
| KG411003 | 1/8 | 1.94 | 1.31 | 1.06 | 0.69 | 0.25 | 0.16 | 0.013 |
| KG411005 | 3/16 | 1.94 | 1.31 | 1.06 | 0.69 | 0.31 | 0.2 | 0.013 |
| KG411006 | 1/4 | 1.94 | 1.31 | 1.06 | 0.69 | 0.38 | 0.28 | 0.013 |
| KG411008 | 5/16 | 2.13 | 1.5 | 1.25 | 0.81 | 0.44 | 0.34 | 0.016 |
| KG411010 | 3/8 | 2.38 | 1.61 | 1.46 | 0.94 | 0.53 | 0.41 | 0.026 |
| KG411013 | 1/2 | 2.75 | 1.88 | 1.75 | 1.13 | 0.69 | 0.53 | 0.052 |
| KG411016 | 5/8 | 3.5 | 2.25 | 2.38 | 1.38 | 0.91 | 0.66 | 0.145 |
| KG411019 | 3/4 | 3.75 | 2.5 | 2.69 | 1.63 | 1.08 | 0.78 | 0.2 |
| KG411022 | 7/8 | 5 | 3.5 | 3.19 | 1.88 | 1.27 | 0.94 | 0.32 |
| KG411025 | 1 | 6.69 | 4.25 | 3.75 | 2.5 | 1.39 | 1.06 | 0.4 |
| KG411032 | 1-1/8 -1-1/4 | 6.25 | 4.5 | 4.31 | 2.75 | 1.75 | 1.31 | 0.84 |
| KG411035 | 1-3/8 | 8.15 | 7.54 | 5.71 | 3.54 | 1.89 | 1.42 | 1.36 |
| KG411038 | 1-1/2 | 8.86 | 8.11 | 6.5 | 4.13 | 2.03 | 1.56 | 1.42 |
| KG411041 | 1-5/8 | 9.76 | 9.06 | 6.93 | 4.33 | 2.32 | 1.69 | 1.64 |
| KG411045 | 1-3/4 | 10.39 | 9.59 | 7.09 | 4.33 | 2.44 | 1.81 | 1.94 |
| KG411048 | 1-7/8 | 11.14 | 10.39 | 7.32 | 4.5 | 2.68 | 2.05 | 2.14 |
| KG411051 | 2 | 11.38 | 10.63 | 7.4 | 4.5 | 2.72 | 2.09 | 4.94 |
| KG411064 | 2-1/2 | 12.45 | 11.63 | 9.92 | 5.98 | 3.31 | 2.52 | 7.4 |
