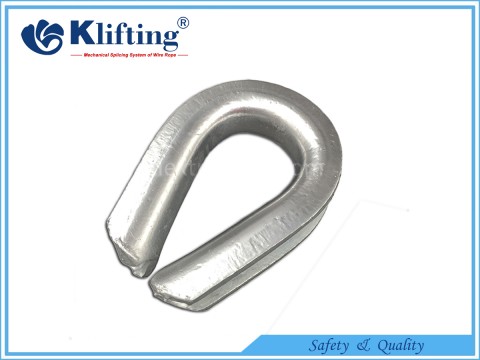

Available in hot dip galvanized or stainless steel(Type 304 or 316).
Stainless steel recommended for more corrosive environments where greater protection is required.
Greater protection againest wear and deformation of the wire rope eye.
Longer service life.
| Part No. | Size | Dimensions(inch) | Weight | |||||||
| inch | A | B | C | D | E | F | G | H | kg/pcs | |
| KG414006 | 1/4 | 2.19 | 1.62 | 1.50 | 0.88 | 0.41 | 0.28 | 0.06 | 0.25 | 0.012 |
| KG414008 | 5/16 | 2.50 | 1.88 | 1.81 | 1.06 | 0.50 | 0.34 | 0.08 | 0.30 | 0.05 |
| KG414010 | 3/8 | 2.88 | 2.12 | 2.12 | 1.12 | 0.63 | 0.41 | 0.11 | 0.39 | 0.10 |
| KG414011 | 7/16 | 3.25 | 2.38 | 2.38 | 1.25 | 0.72 | 0.47 | 0.12 | 0.45 | 0.136 |
| KG414013 | 1/2-9/16 | 3.62 | 2.75 | 2.75 | 1.50 | 0.89 | 0.59 | 0.15 | 0.48 | 0.22 |
| KG414016 | 5/8 | 4.25 | 3.25 | 3.12 | 1.75 | 1.00 | 0.66 | 0.16 | 0.53 | 0.32 |
| KG414019 | 3/4 | 5.00 | 3.75 | 3.81 | 2.00 | 1.22 | 0.78 | 0.22 | 0.69 | 0.60 |
| KG414022 | 7/8 | 5.50 | 4.25 | 4.25 | 2.25 | 1.38 | 0.94 | 0.22 | 0.78 | 0.86 |
| KG414025 | 1 | 6.12 | 4.50 | 4.75 | 2.50 | 1.56 | 1.06 | 0.25 | 0.88 | 1.06 |
| KG414032 | 1-1/8-1-1/4 | 7.00 | 5.12 | 5.88 | 2.88 | 1.88 | 1.31 | 0.25 | 1.25 | 1.54 |
| KG414035 | 1-1/4-1-3/8 | 9.08 | 6.50 | 6.81 | 3.50 | 2.25 | 1.44 | 0.37 | 1.29 | 3.71 |
| KG414038 | 1-3/8-1-1/2 | 9.00 | 6.25 | 7.12 | 3.50 | 2.62 | 1.56 | 0.50 | 1.31 | 4.20 |
| KG414041 | 1-5/8 | 11.25 | 8.00 | 8.12 | 4.00 | 3.00. | 1.72 | 0.50 | 1.38 | 6.25 |
| KG414045 | 1-3/4 | 12.19 | 9.00 | 8.50 | 4.50 | 3.06 | 1.84 | 0.50 | 1.50 | 7.10 |
| KG414051 | 1-7/8-2 | 15.12 | 12.00 | 10.38 | 6.00 | 3.38 | 2.09 | 0.50 | 1.69 | 10.44 |
| KG414057 | 2-1/4 | 17.50 | 14.00 | 11.88 | 7.00 | 3.88 | 2.38 | 0.62 | 1.82 | 18.44 |
| KG414064 | 2-1/2 | 18.11 | 14.57 | 12.40 | 7.28 | 4.13 | 2.60 | 0.87 | 0.67 | 25.00 |
| KG414067 | 2-5/8 | 19.61 | 15.35 | 12.99 | 7.68 | 4.53 | 2.72 | 0.91 | 0.71 | 25.00 |
| KG414070 | 2-3/4 | 21.06 | 16.54 | 13.39 | 8.27 | 4.53 | 2.76 | 0.94 | 0.73 | 32.50 |
| KG414078 | 3 | 23.70 | 19.17 | 15.94 | 10.04 | 5.12 | 3.54 | 0.98 | 0.75 | 39.00 |
| KG414084 | 3-1/4 | 25.59 | 18.82 | 15.12 | 9.25 | 5.00 | 3.31 | 1.02 | 0.79 | 41.50 |
| KG414090 | 3-1/2 | 25.59 | 19.69 | 15.35 | 9.45 | 5.20 | 3.62 | 1.02 | 0.87 | 48.00 |
| KG414105 | 4 | 25.98 | 20.87 | 15.75 | 9.84 | 5.71 | 4.13 | 1.02 | 0.87 | 55.00 |
