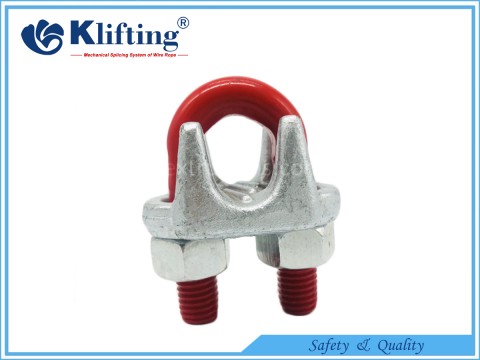

US G450 Type Drop Forged Clip
| Part No. | Rope Size | Dimensions(mm) | ||||||||
| inch | mm | A | B | C | D | E | F | G | H | |
| KG45000108 | 1/8 | 3-4 | 5.6 | 18.3 | 11.2 | 11.9 | 10.4 | 9.65 | 20.6 | 23.9 |
| KG45000316 | 3/16 | 5 | 6.35 | 24.6 | 14.2 | 15 | 12.7 | 11.2 | 23.9 | 29.5 |
| KG45000104 | 1/4 | 6-7 | 7.85 | 26.2 | 12.7 | 19.1 | 16.8 | 14.2 | 30.2 | 36.6 |
| KG45000516 | 5/16 | 8 | 9.65 | 35.1 | 19.1 | 22.4 | 18.3 | 17.5 | 33.3 | 42.9 |
| KG45000308 | /8 | 9-10 | 11.2 | 38.1 | 19.1 | 25.4 | 23.1 | 19.1 | 41.4 | 49.3 |
| KG45000716 | 7/16 | 11 | 12.7 | 47.8 | 25.4 | 30.2 | 26.2 | 22.4 | 46 | 58 |
| KG45000102 | 1/2 | 12-13 | 12.7 | 47.8 | 25.4 | 30.2 | 28.7 | 22.4 | 48.5 | 58 |
| KG45000916 | 9/16 | 14-15 | 14.2 | 57 | 31.8 | 33.3 | 31 | 23.9 | 52.5 | 63.5 |
| KG45000508 | 5/8 | 16 | 14.2 | 60.5 | 31.8 | 33.3 | 34 | 23.9 | 52.5 | 63.5 |
| KG45000304 | 3/4 | 18-20 | 15.7 | 70 | 36.6 | 38.1 | 35.8 | 26.9 | 57 | 72 |
| KG45000708 | 7/8 | 22 | 19.1 | 79 | 41.1 | 44.5 | 40.4 | 31.8 | 62 | 80.5 |
| KG45010000 | 1 | 24-26 | 19.1 | 89 | 46 | 47.8 | 45.2 | 31.8 | 67 | 88 |
| KG45010108 | 1-1/8 | 28-30 | 19.1 | 98.5 | 51 | 51 | 48.5 | 31.8 | 71.5 | 91 |
| KG45010104 | 1-1/4 | 32-34 | 22.4 | 108 | 54 | 59.4 | 55.5 | 36.6 | 79.5 | 105 |
| KG45010308 | 1-3/8 | 36 | 22.4 | 118 | 58.5 | 59.4 | 58.5 | 36.6 | 79.5 | 106 |
| KG45010102 | 1-1/2 | 38 | 22.4 | 125 | 60.5 | 66.5 | 62 | 36.6 | 86.5 | 113 |
| KG45010508 | 1-5/8 | 41-42 | 25.4 | 135 | 66.5 | 70 | 67.5 | 41.4 | 92 | 121 |
| KG45010304 | 1-3/4 | 44-46 | 28.7 | 146 | 70 | 77.5 | 74.5 | 46 | 97 | 134 |
| KG45020000 | 2 | 48-52 | 31.8 | 164 | 76 | 86 | 77 | 51 | 113 | 149 |
| KG45020104 | 2-1/4 | 56-58 | 31.8 | 181 | 81 | 98.5 | 81 | 51 | 114 | 162 |
| KG45020102 | 2-1/2 | 62-65 | 31.8 | 195 | 87.5 | 105 | 93.5 | 51 | 119 | 168 |
| KG45020304 | 2-3/4 | 68-72 | 31.8 | 211 | 90.5 | 111 | 124 | 51 | 127 | 175 |
| KG45030000 | 3 | 75-78 | 38.1 | 233 | 98.5 | 121 | 119 | 60.5 | 149 | 194 |
| KG45030102 | 3-1/2 | 85-90 | 38.1 | 273 | 114 | 140 | 152 | 60.5 | 157 | 213 |
