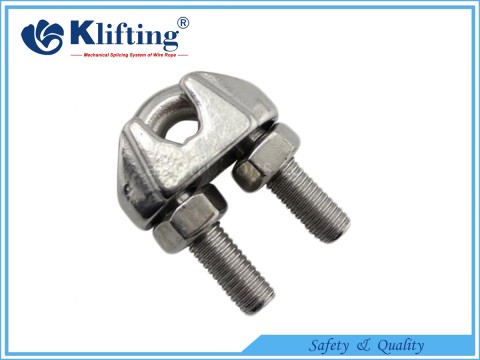

US Malleable Wire Rope Clip
| Part No. | Size | Dimensions(mm) | |||||
| inch | A | B | C | D | E | F | |
| KMC0116 | 1/16 | 17 | 11 | 9.5 | 7.5 | 18.5 | 3 |
| KMC0108 | 1/8 | 21.5 | 13 | 11.5 | 11 | 25 | 5 |
| KMC0316 | 3/16 | 26.5 | 15 | 13 | 14.5 | 31 | 6 |
| KMC0104 | 1/4 | 31.5 | 18 | 15 | 17 | 40 | 8 |
| KMC0516 | 5/16 | 33.5 | 18 | 15.5 | 18.5 | 43 | 8 |
| KMC0308 | 3/8 | 40 | 20 | 22 | 22.5 | 51 | 10 |
| KMC0102 | 1/2 | 49.5 | 24.5 | 22.5 | 26.5 | 67 | 12 |
| KMC0508 | 5/8 | 56.5 | 26 | 28 | 32.5 | 72 | 12 |
| KMC0304 | 3/4 | 59.5 | 30.5 | 33.5 | 34 | 84 | 14 |
