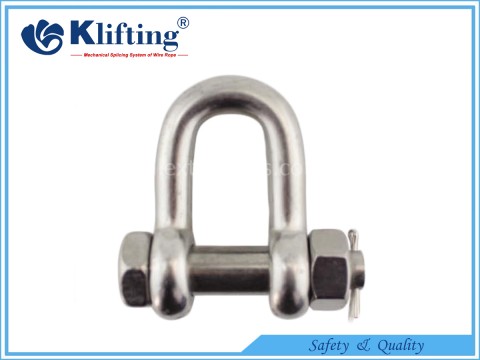

US Type D Shackle with Security Pin
| Part No. | Size | Dimensions(mm) | ||||
| inch | A | B | C | D | E | |
| KUDS00316 | 3/16 | 4.8 | 9 | 20 | 6 | 35 |
| KUDS00104 | 1/4 | 6.4 | 12 | 23 | 8 | 40 |
| KUDS00516 | 5/16 | 8 | 13 | 27 | 9 | 46 |
| KUDS00308 | 3/8 | 9.5 | 16 | 32 | 11 | 55 |
| KUDS00716 | 7/16 | 11.1 | 18 | 38 | 13 | 64 |
| KUDS00102 | 1/2 | 12.7 | 20 | 42 | 16 | 71 |
| KUDS00508 | 5/8 | 16 | 27 | 52 | 20 | 90 |
| KUDS00304 | 3/4 | 19 | 31 | 61 | 23 | 105 |
| KUDS00708 | 7/8 | 22.4 | 36 | 73 | 26 | 122 |
| KUDS10000 | 1 | 25.4 | 43 | 82 | 29 | 137 |
| KUDS10108 | 1-1/8 | 29.2 | 46 | 92 | 32 | 150 |
| KUDS10104 | 1-1/4 | 31.8 | 51 | 101 | 36 | 170 |
| KUDS10308 | 1-3/8 | 35 | 57 | 113 | 39 | 183 |
| KUDS10102 | 1-1/2 | 38.1 | 60 | 124 | 42 | 196 |
| KUDS10304 | 1-3/4 | 44.4 | 73 | 148 | 52 | 237 |
| KUDS20000 | 2 | 53.3 | 82 | 173 | 58 | 264 |
| KUDS20102 | 2-1/2 | 66.8 | 105 | 205 | 71 | 345 |
| KUDS30000 | 3 | 76.2 | 127 | 217 | 83 | 384 |
